Part No.: 22191
Description: 22191-90° BSP FEMALE MULTISEAL
Convertible code:
Material: Carbon Steel 45#
Surface Treatment: Zinc, Cr3+ Plating, Clear White
Corrossion Resistent Hour: 120h or longer
Degree: 90°

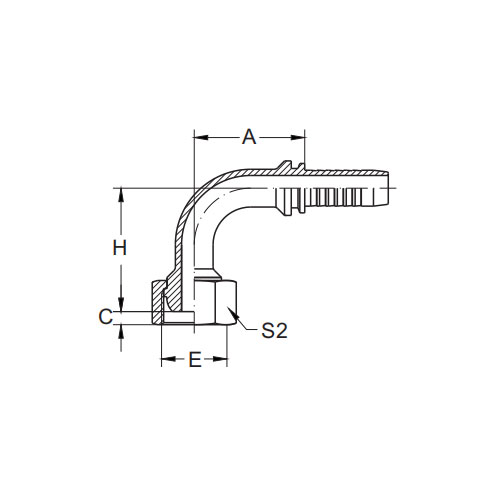

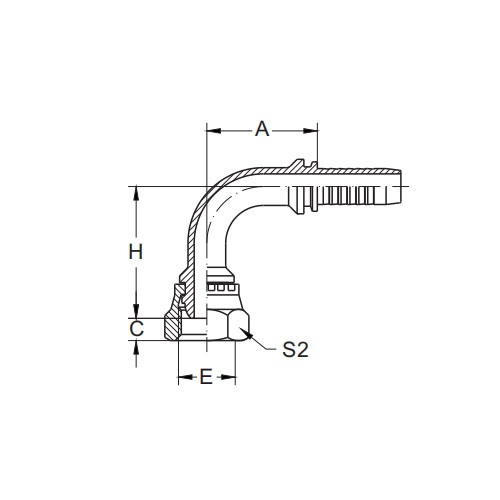

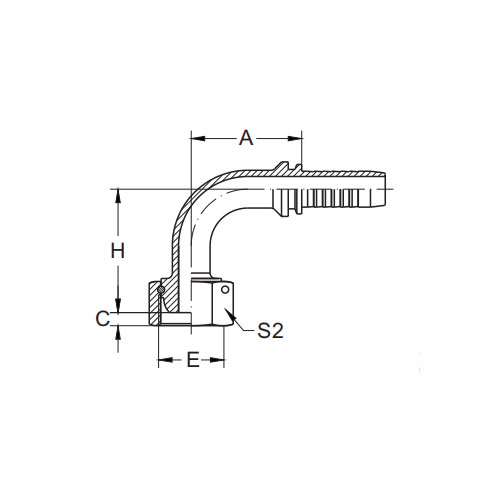

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||
| 22191-02-04 | G1/8x28 | 6 | 4 | 30 | 2 | 38 | 14 |
| 22191-04-03 | G1/4x19 | 5 | 3 | 27 | 4 | 35 | 19 |
| 22191-04-04 | G1/4x19 | 6 | 4 | 30 | 4 | 38 | 19 |
| 22191-04-05 | G1/4x19 | 8 | 5 | 33 | 4 | 41 .5 | 19 |
| 22191-06-05 | G3/8x19 | 8 | 5 | 33 | 5 | 42 | 22 |
| 22191-06-06 | G3/8x19 | 10 | 6 | 35 .3 | 5 | 44 .3 | 22 |
| 22191-06-08 | G3/8x19 | 12 | 8 | 41 | 5 | 50 | 22 |
| 22191-08-06T | G1/2x14 | 10 | 6 | 35 .3 | 6 | 44 .3 | 27 |
| 22191-08-08 | G1/2x14 | 12 | 8 | 41 | 6 | 52 .5 | 27 |
| 22191-10-10 | G5/8x14 | 16 | 10 | 56 | 8 | 57 .5 | 30 |
| 22191-10-12 | G5/8x14 | 20 | 12 | 65 .5 | 8 | 67 | 30 |
| 22191-12-08T | G3/4x14 | 12 | 8 | 41 | 9 .5 | 52 | 32 |
| 22191-12-10 | G3/4x14 | 16 | 10 | 56 | 9 .5 | 58 .5 | 32 |
| 22191-12-12 | G3/4x14 | 20 | 12 | 64 .9 | 9 .5 | 68 | 32 |
| 22191-16-12T | G1x11 | 20 | 12 | 65 .5 | 11 | 65 | 41 |
| 22191-16-14 | G1x11 | 22 | 14 | 71 .2 | 11 | 69 .5 | 41 |
| 22191-16-16 | G1x11 | 25 | 16 | 77 .5 | 11 | 73 .2 | 41 |
| 22191-20-16T | G1- 1/4x11 | 25 | 16 | 76 .7 | 10 | 72 | 50 |
| 22191-20-20W | G1- 1/4x11 | 32 | 20 | 91 .5 | 10 | 85 | 50 |
| 22191-24-24W | G1- 1/2x11 | 40 | 24 | 109 .4 | 11 .5 | 108 | 55 |
| 22191-32-32W | G2x11 | 50 | 32 | 131 | 15 | 128 .3 | 70 |
22191-90° BSP Female Multiseal English Introduction
The 22191-90° BSP Female Multiseal is a precision-engineered sealing component designed specifically for British Standard Pipe (BSP) systems, offering a robust and multi-layered sealing solution. This innovative fitting is characterized by its 90° female thread, which facilitates a straight and secure connection with its corresponding male counterpart.
The Multiseal feature of this fitting incorporates multiple sealing elements, providing a redundant sealing mechanism that significantly enhances the resistance to leakage. This ensures a secure and leak-free connection, even under high-pressure and high-temperature conditions.
Manufactured from high-quality materials, the 22191-90° BSP Female Multiseal is designed to withstand the harshest industrial environments. Its durability and corrosion resistance ensure reliable performance over a long service life.
The BSP compatibility of this sealing component means it can be seamlessly integrated into existing BSP systems, eliminating the need for complex modifications or adaptors. This simplifies the installation process and ensures compatibility with a wide range of BSP components.
Whether you're working with hydraulics, pneumatics, or any other fluid-based system, the 22191-90° BSP Female Multiseal is an excellent choice for a secure and reliable sealing solution. Its precision manufacturing, high-quality materials, and BSP compatibility make it a trusted component in industrial fluid systems, ensuring smooth and efficient fluid transfer with minimal leakage risks.
