Part No.: 6B/6B-LN
Description: BSPP MALE 60°SEAT BULKHEAD
Convertible code:
Material: Carbon Steel 45#
Surface Treatment: Zinc, Cr3+ Plating, Clear White
Corrossion Resistent Hour: 120h or longer
Degree: Straight

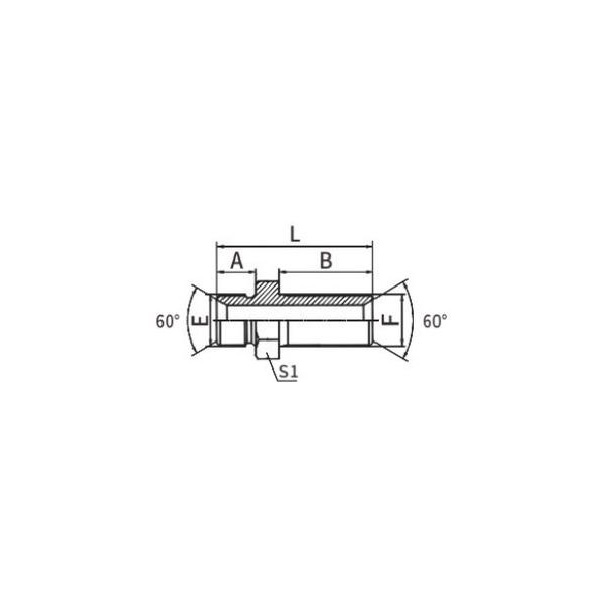

| PART NO. | THREAD | DIMENSIONS | ||||
| F | A | B | L | S1 | S2 | |
| 6B-02 | G1/8"X28 | 10 | 33 | 49 | 14 | 14 |
| 6B-04 | G1/4"X19 | 12 | 35 | 53 | 19 | 19 |
| 6B-06 | G3/8"X19 | 13.5 | 35 | 56.5 | 22 | 22 |
| 6B-08 | G1/2"X14 | 16 | 39 | 65 | 27 | 27 |
| 6B-12 | G3/4"X14 | 18.5 | 42 | 71.5 | 32 | 32 |
| 6B-16 | G1"X11 | 20.5 | 50 | 84 | 41 | 41 |
| 6B-20 | G1.1/4"X11 | 20.5 | 52 | 89.5 | 50 | 50 |
| 6B-24 | G1.1/2"X11 | 23 | 55 | 93 | 55 | 55 |
| 6B-32 | G2"X11 | 25.5 | 55 | 98.5 | 70 | 70 |

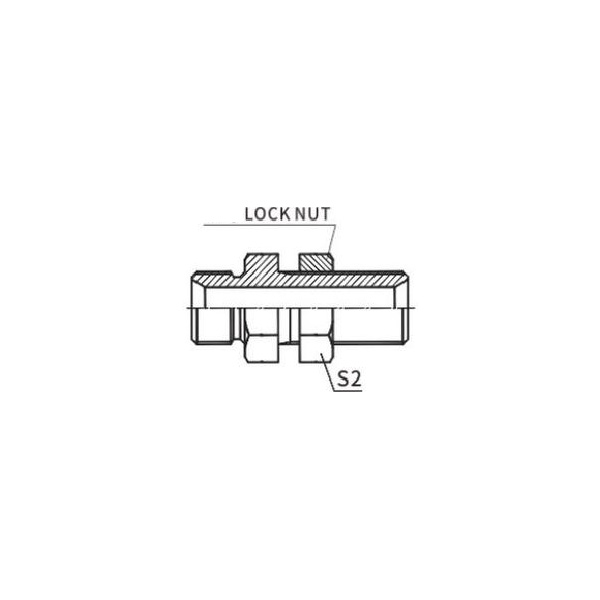

| Note:In case if you are interested to order the adapter in complete set with lock nut,it is necessar to intsert suffix“LN”after our part NO.,for example 6B-16LN,The lock nut N0.is 8B. | ||||||
Product Introduction: 45° BSP Male 60° Seat/BSP Female 60° Cone
The 45° BSP Male 60° Seat/BSP Female 60° Cone fitting is a type of threaded pipe fitting designed to connect pipes securely and efficiently. BSP, standing for British Standard Pipe, is a common threading standard widely used in the plumbing and piping industries.
The male end of this fitting features a 45° thread angle and a 60° seat, which ensures a tight and leak-free seal when mated with the corresponding female end. The female end, on the other hand, has a 60° cone shape, which mates perfectly with the male thread, providing a secure and robust connection.
This fitting is made from high-quality materials that can withstand high pressures and temperatures, ensuring its durability and reliability in various applications. It is commonly used in industrial piping systems, water supply lines, and other fluid transfer systems where a secure and leak-free connection is crucial.
With its precision threading and robust design, the 45° BSP Male 60° Seat/BSP Female 60° Cone fitting is an ideal choice for connecting pipes in a variety of settings, including commercial, industrial, and residential applications.
