Part No.: AQ
Description: AQ METRIC MALE 74° CONE TEE
Convertible code:
Material: Carbon Steel 45#
Surface Treatment: Zinc, Cr3+ Plating, Clear White
Corrossion Resistent Hour: 120h or longer
Degree: TEE

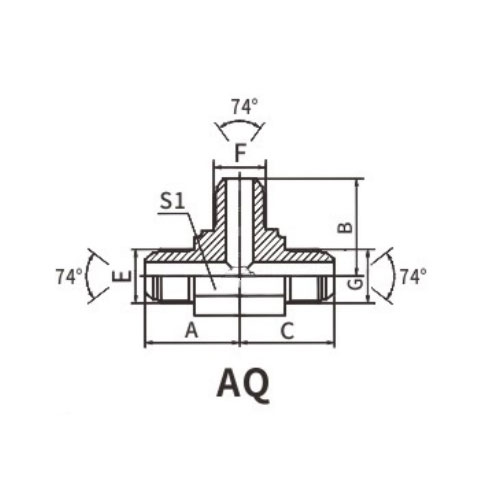

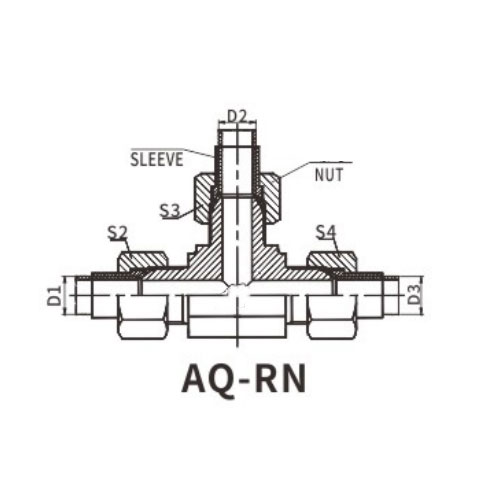

| PART NO | THREAD | TUBE O.D, | DIMENSIONS | ||||||
| E | G | D1,D2,D3 | A | B | C | S1 | S2,S3,S4 | ||
| AQ-14 | M14X1.5 | M14X1.5 | M14X1.5 | 8 | 27 | 27 | 27 | 14 | 17 |
| AQ-16 | M16X1.5 | M16X1.5 | M16X1.5 | 10 | 29.5 | 29.5 | 29.5 | 16 | 19 |
| AQ-18 | M18X1.5 | M18X1.5 | M18X1.5 | 12 | 34 | 34 | 34 | 19 | 22 |
| AQ-22 | M22X1.5 | M22X1.5 | M22X1.5 | 14 | 37.5 | 37.5 | 37.5 | 22 | 27 |
| AQ-27 | M27X1.5 | M27X1.5 | M27X1.5 | 18 | 41.5 | 41.5 | 41.5 | 27 | 32 |
| AQ-33 | M33X2 | M33X2 | M33X2 | 22 | 49.5 | 49.5 | 49.5 | 33 | 38 |
AQ Metric Male 74° Cone Tee English Introduction
The AQ Metric Male 74° Cone Tee is a precision-engineered fluid system component designed to offer optimal performance and reliability in a variety of industrial applications. This unique tee fitting features a metric male thread on one end and a 74° cone seal on the other, providing a secure and leak-free connection for fluid transfer.
The metric male thread is designed to mate perfectly with corresponding female threads, ensuring a snug and secure fit. This threading system is widely used in metric-based piping systems, allowing for seamless integration into mixed-system applications.
The 74° cone seal on the other end of the tee creates a robust and leak-resistant connection. The tapered design of the cone ensures a tight seal when mated with a compatible female cone port, providing a secure connection that can withstand high pressures and temperatures.
The tee configuration of this connector allows for the convenient distribution of fluids in three directions. This feature is particularly useful in systems that require fluid to be routed to multiple destinations, such as branch lines or manifolds.
Manufactured from high-quality materials, the AQ Metric Male 74° Cone Tee is corrosion-resistant and durable, ensuring long-term reliability and performance. It is suitable for use in a wide range of industrial fluid systems, including hydraulics, pneumatics, and other liquid and gas transfer applications.
In summary, the AQ Metric Male 74° Cone Tee is a robust and reliable fluid system component designed to offer optimal performance in industrial applications. Its precision-engineered threading and sealing systems, along with its tee configuration, make it a trusted solution for secure and efficient fluid transfer in a variety of piping systems.
