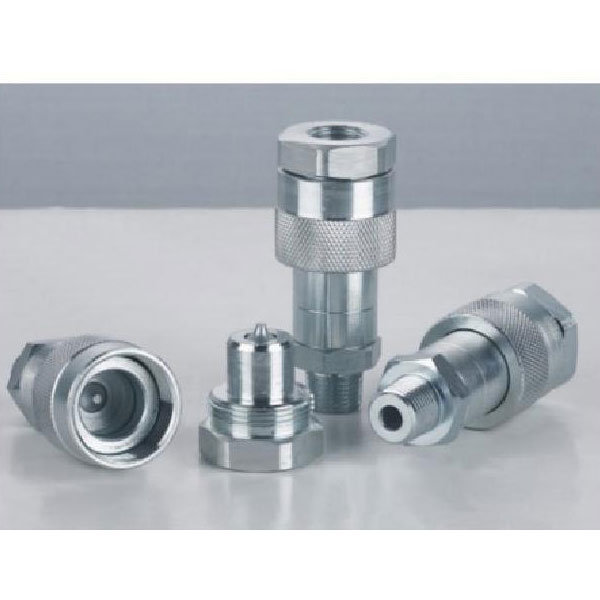

Part No.: KZE-B
Description: KZE-B Hydraulic High Pressure Quick Coupling
Convertible code:
Material: Carbon Steel 45#
Surface Treatment: Nickel-plating
Corrossion Resistent Hour: 240h or longer
Degree: Straight
| SPECIFICATIONS | ||
| Body Size(Inch) | 1/4 | 3/8 |
| Rated Pressure(Mpa) | 70 | 70 |
| Rated Flow(L/Min) | 15 | 20 |
| Temperture Range (NBR) | -20℃~+80℃ | |
| PART NO | Thread | L | L1 | L2 | D1 | D2 | Ch1 | Ch2 |
| KZE-B-G02 | NPT | 80 | 59.5 | 32.5 | 28.5 | 15.8 | 22 | 19 |
| KZE-B-G03 | NPT | 80 | 59.5 | 32.5 | 28.5 | 15.8 | 22 | 19 |
| KZE-B-G04 | NPT | 85 | 73.5 | 35 | 35 | 19 | 25 | 32 |
| KZE-B-G06 | NPT | 85 | 73.5 | 35 | 35 | 19 | 25 | 32 |
This coupling is engineered to handle the demands of high-pressure fluid transfer, ensuring safe, efficient, and leak-free operation.
Constructed from high-grade materials, the KZE coupling boasts exceptional durability and corrosion resistance, enabling it to withstand the harshest working environments. Its precision-engineered components ensure a secure and tight seal, preventing fluid leakage even under extreme pressure conditions.
The quick-connect and quick-disconnect mechanism of the KZE coupling allows for rapid and effortless attachment and detachment of hydraulic lines. This feature significantly reduces downtime and increases operational efficiency, making it an ideal choice for applications that require frequent line changes or rapid maintenance.
The KZE coupling also offers superior safety features. Its robust design and secure sealing mechanism protect operators from potential hazards associated with high-pressure fluid leaks. Additionally, the coupling is easy to operate and maintain, reducing the need for specialized tools or equipment.
In conclusion, the KZE Hydraulic High Pressure Quick Coupling is an excellent choice for hydraulic systems that require reliable and efficient high-pressure fluid transfer. Its durability, precision engineering, and quick-connect/disconnect features make it a top pick for a wide range of industrial and mechanical applications.
