PartNo.:20241
Description: 20241-45°METRIC FEMALE FLAT SEAL
Convertible code:
Material:Carbon Steel 45#
Surface Treatment: Zinc,Cr3+Plating, Clear White
Corrossion Resistent Hour:120h or longer
Degree:45°

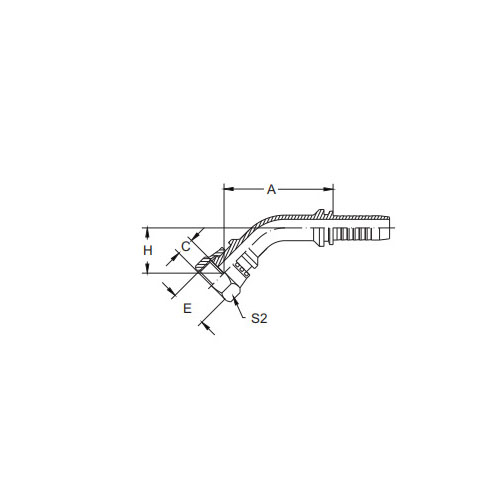

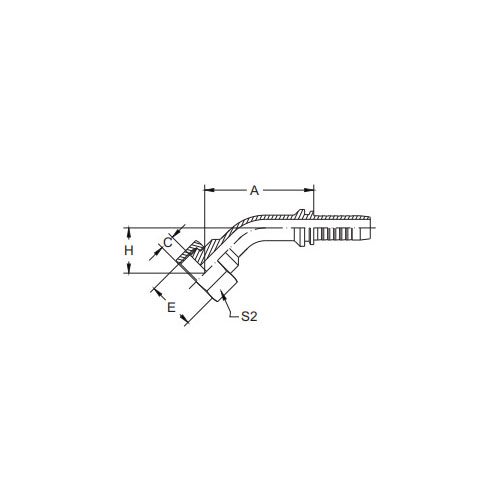

| PARTNO. | THREADE | HOSEBORE | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||
| 20241-14-04 | M14x1.5 | 6 | 4 | 40.5 | 8.5 | 18.5 | 19 |
| 20241-14-05 | M14x1.5 | 8 | 5 | 42.7 | 8.5 | 19.3 | 19 |
| 20241-16-05 | M16x1.5 | 8 | 5 | 43.4 | 8.5 | 20 | 22 |
| 20241-18-06 | M18x1.5 | 10 | 6 | 45.7 | 8.5 | 21.4 | 24 |
| 20241-22-08 | M22x1.5 | 12 | 8 | 58.9 | 10 | 24 | 27 |
| 20241-27-10T | M27x1.5 | 16 | 10 | 68.6 | 10 | 24.3 | 32 |
| 20241-30-12 | M30x1.5 | 20 | 12 | 77.4 | 11 | 30 | 36 |
| 20241-36-12T | M36x2 | 20 | 12 | 75 | 13 | 27.5 | 41 |
| 20241-36-14T | M36x2 | 22 | 14 | 77.3 | 13 | 27 | 41 |
| 20241-36-16 | M36x2 | 25 | 16 | 85.7 | 13 | 31.5 | 41 |
| 20241-39-16T | M39x2 | 25 | 16 | 83.9 | 13 | 29.7 | 46 |
| 20241-42-20 | M42x2 | 32 | 20 | 95.9 | 15 | 35.2 | 50 |
| 20241-45-20T | M45x2 | 32 | 20 | 94.5 | 15 | 33.8 | 55 |
| 20241-52-20T | M52x2 | 32 | 20 | 94.5 | 17 | 33.8 | 60 |
| 20241-52-24T | M52x2 | 40 | 24 | 108.5 | 17 | 37.7 | 60 |
| 20241-60-28T | M60x2 | 45 | 28 | 118.7 | 20 | 43.6 | 70 |
| 20241-64-32T | M64x2 | 50 | 32 | 127.8 | 23 | 45.6 | 75 |
20241-45° Metric Female Flat Seal Introduction
The 20241-45° Metric Female Flat Seal is a precision-engineered fitting designed to provide a secure and leak-free seal in metric fluid systems. This unique fitting features a 45° angle on the female end, which offers both a secure connection and ease of installation.
The flat seal design of the 20241-45° Metric Female Flat Seal ensures a tight and reliable sealing surface, effectively preventing fluid leaks and maintaining system integrity. This feature is particularly important in high-pressure or critical applications where leaks can have serious consequences.
Manufactured from high-quality materials, the 20241-45° Metric Female Flat Seal is built to withstand the rigors of industrial use. It exhibits excellent durability and resistance to corrosion, ensuring a long service life even in harsh environments.
The 45° angle on the female end not only provides a secure connection but also facilitates alignment with the corresponding male component. This feature simplifies the installation process, reducing downtime and enhancing operational efficiency.
Overall, the 20241-45° Metric Female Flat Seal is a reliable and efficient fitting that offers superior sealing capabilities for metric fluid systems. Its precision engineering, high-quality materials, and innovative design make it a valuable addition to any industrial fluid system that demands secure and leak-free connections.
