PartNo.:20291
Description:20291-90°METRIC FEMALE FLAT SEAT
Convertible code:
Material:Carbon Steel 45#
SurfaceTreatment: Zinc, Cr3+Plating, Clear White
Corrossion Resistent Hour: 120h or longer
Degree:90°

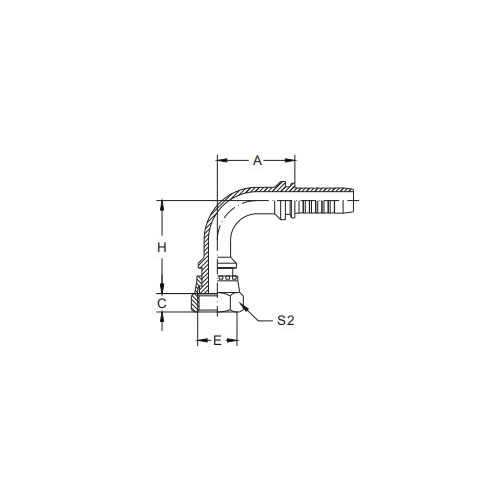

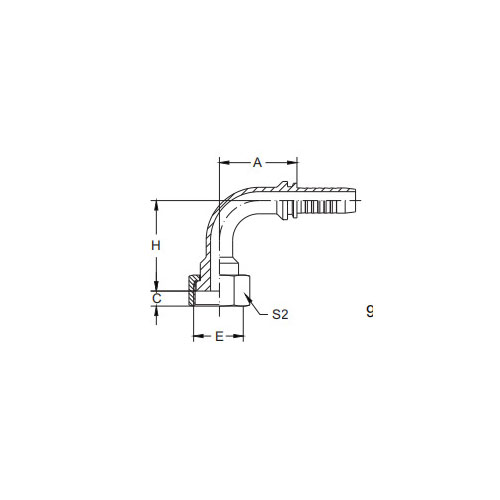

| PARTNO. | THREADE | HOSEBORE | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||
| 20291-12-02 | M12x1.5 | 4 | 2 | 26.5 | 8.5 | 30.5 | 17 |
| 20291-12-04 | M12x1.5 | 6 | 4 | 30 | 8.5 | 33.5 | 17 |
| 20291-14-04 | M14x1.5 | 6 | 4 | 30 | 8.5 | 34 | 19 |
| 20291-14-05 | M14x1.5 | 8 | 5 | 33 | 8.5 | 37 | 19 |
| 20291-16-04 | M16x1.5 | 6 | 4 | 30 | 8.5 | 35 | 22 |
| 20291-16-05 | M16x1.5 | 8 | 5 | 33 | 8.5 | 38 | 22 |
| 20291-16-06 | M16x1.5 | 10 | 6 | 35.3 | 8.5 | 40.3 | 22 |
| 20291-18-05T | M18x1.5 | 8 | 5 | 33 | 8.5 | 39 | 24 |
| 20291-18-06 | M18x1.5 | 10 | 6 | 35.3 | 8.5 | 41.3 | 24 |
| 20291-22-08 | M22x1.5 | 12 | 8 | 41 | 10 | 48 | 27 |
| 20291-22-10 | M22x1.5 | 16 | 10 | 56 | 10 | 53 | 27 |
| 20291-27-04T | M27x1.5 | 6 | 4 | 30 | 10 | 35.5 | 32 |
| 20291-27-08T | M27x1.5 | 12 | 8 | 41 | 10 | 46 | 32 |
| 20291-27-10T | M27x1.5 | 16 | 10 | 56 | 10 | 51 | 32 |
| 20291-30-12 | M30x1.5 | 20 | 12 | 65.5 | 11 | 63.5 | 36 |
| 20291-36-14T | M36x2 | 22 | 14 | 71.2 | 13 | 61 | 41 |
| 20291-36-16 | M36x2 | 25 | 16 | 76.7 | 13 | 70 | 41 |
| 20291-39-16T | M39x2 | 25 | 16 | 76.7 | 13 | 67.5 | 46 |
| 20291-42-20W | M42x2 | 32 | 20 | 91.5 | 15 | 80.5 | 50 |
| 20291-45-20T | M45x2 | 32 | 20 | 91.5 | 15 | 78.5 | 55 |
| 20291-52-20T | M52x2 | 32 | 20 | 91.5 | 17 | 78.5 | 60 |
| 20291-52-24T | M52x2 | 40 | 24 | 109.4 | 17 | 92 | 60 |
| 20291-60-28T | M60x2 | 45 | 28 | 119.9 | 20 | 106.5 | 70 |
| 20291-64-32T | M64x2 | 50 | 32 | 130.95 | 23 | 113.3 | 75 |
20291-90° Metric Female Flat Seat Introduction
The 20291-90° Metric Female Flat Seat is a precision-crafted fitting designed for metric fluid systems, offering a secure and leak-resistant connection through its unique 90° female configuration and flat seat design. This fitting is an ideal choice for applications that require a robust and reliable connection with a flat sealing surface.
The flat seat of the 20291-90° Metric Female Flat Seat provides a stable sealing interface, ensuring a tight and leak-free connection. The 90° orientation of the female end allows for easy installation and alignment with corresponding male components, further enhancing the reliability of the connection.
Manufactured from high-quality materials, this fitting is built to withstand the demands of various industrial and commercial applications. It exhibits excellent durability and resistance to corrosion, ensuring long-lasting performance even in harsh environments.
The compact design and smooth surfaces of the 20291-90° Metric Female Flat Seat facilitate quick and efficient installation, reducing downtime and enhancing operational efficiency. Its ability to withstand high pressure and maintain a secure seal makes it suitable for a wide range of fluid systems, including those that operate under extreme conditions.
In summary, the 20291-90° Metric Female Flat Seat is a reliable and efficient fitting that offers superior sealing capabilities and durability for metric fluid systems. Its precision engineering and high-quality materials ensure its long-term performance and make it a valuable addition to any industrial fluid system that demands secure and leak-free connections.
