Part No.: 20611
Description: 20611-METRIC FEMALE 60° CONE
Convertible code:
Material: Carbon Steel 45#
Surface Treatment: Zinc, Cr3+Plating, Clear White
Corrossion Resistent Hour: 120h or longer
Degree: Straight

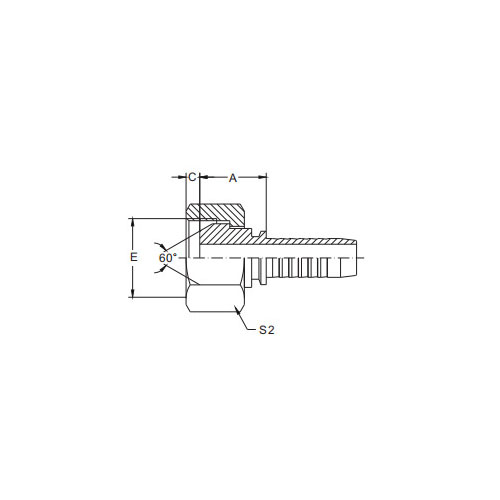

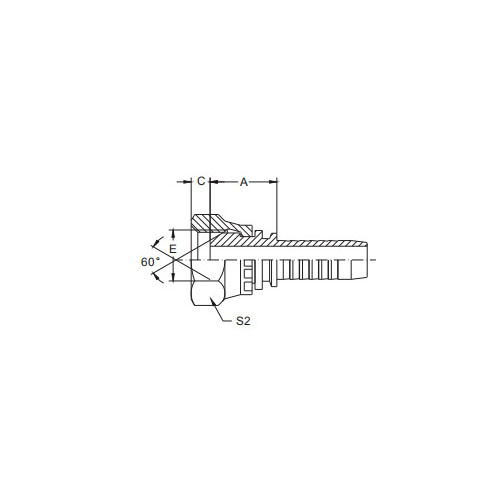

| PARTNO. | THREADE | HOSEBORE | DIMENSIONS | |||
| DN | DASH | A | C | S2 | ||
| 20611-14-04 | M14x1.5 | 6 | 4 | 18 | 5.5 | 19 |
| 20611-16-05 | M16x1.5 | 8 | 5 | 18.5 | 5.5 | 22 |
| 20611-16-06 | M16x1.5 | 10 | 6 | 19 | 5.5 | 22 |
| 20611-18-06 | M18x1.5 | 10 | 6 | 20 | 5.5 | 24 |
| 20611-20-08 | M20x1.5 | 12 | 8 | 22 | 6.5 | 27 |
| 20611-22-08 | M22x1.5 | 12 | 8 | 22.5 | 6 | 27 |
| 20611-24-10 | M24x1.5 | 16 | 10 | 24.5 | 6.5 | 30 |
| 20611-26-10 | M26x1.5 | 16 | 10 | 24.5 | 6 | 32 |
| 20611-27-10DT | M27x1.5 | 16 | 10 | 25.5 | 6 | 32 |
| 20611-27-10T | M27x2 | 16 | 10 | 25.5 | 6 | 32 |
| 20611-30-10D | M30x1.5 | 16 | 10 | 26.5 | 6 | 36 |
| 20611-30-12D | M30x1.5 | 20 | 12 | 26.5 | 6 | 36 |
| 20611-30-12 | M30x2 | 20 | 12 | 26.5 | 6 | 36 |
| 20611-36-16 | M36x2 | 25 | 16 | 30 | 6.5 | 41 |
| 20611-39-16T | M39x2 | 25 | 16 | 30 | 6.5 | 46 |
| 20611-45-20T | M45x2 | 32 | 20 | 31 | 8.5 | 55 |
| 20611-52-24T | M52x2 | 40 | 24 | 32 | 10 | 60 |
20611-Metric Female 60° Cone Introduction
The 20611-Metric Female 60° Cone is a precision-engineered fitting that offers a secure and reliable connection in metric piping systems. This female fitting, characterized by its 60° cone angle, is designed to mate securely with compatible male cone-threaded components, ensuring a tight and leak-free seal.
The 60° cone design of the 20611-Metric Female 60° Cone is optimized for maximum sealing performance. It creates a secure joint that can withstand high pressures and various operating conditions, making it suitable for a wide range of industrial applications.
Manufactured from high-quality materials, this fitting is built to last. It exhibits excellent corrosion resistance and durability, ensuring reliable performance even in harsh environments.
The precision threading and cone shape of the 20611-Metric Female 60° Cone contribute to its exceptional sealing capabilities. The threads are meticulously crafted to ensure a smooth and secure mating process with the male component, minimizing the risk of leaks or slippage.
Whether you're working with high-pressure fluid systems, chemical processing plants, or any other metric piping scenario, the 20611-Metric Female 60° Cone is an excellent choice. Its robust design, precision engineering, and high-quality materials make it a dependable solution for your metric piping needs.
