Part No.: 20518D
Description: 20518D-METRIC FEMALE 24°CONE O-RING H.T. DETACHABLE HOSE FITTING
Convertible code:
Material: Carbon Steel 45#
Surface Treatment: Zinc, Cr3+Plating, Clear White
Corrossion Resistent Hour: 120h or longer
Degree: Straight

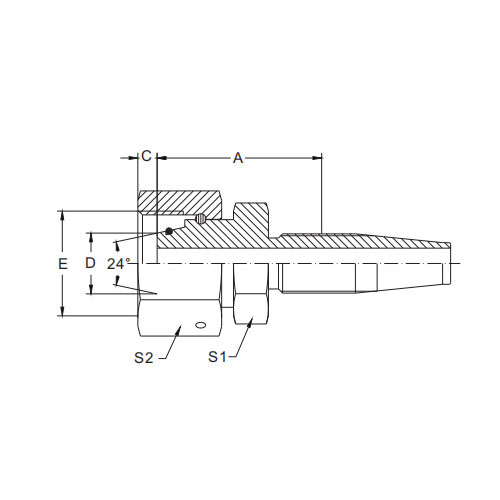

| PARTNO. | THREADE | HOSE BORE | TUBEO.D. | DIMENSIONS | ||||
| DN | DASH | A | C | S1 | S2 | |||
| 20518D-16-04 | M14x1.5 | 5 | 4 | 8 | 31.5 | 2.4 | 14 | 19 |
| 20518D-16-05 | M16x1.5 | 6.3 | 5 | 8 | 33.4 | 2.4 | 14 | 19 |
| 20518D-18-04 | M18x1.5 | 5 | 4 | 10 | 32 | 2.4 | 17 | 22 |
| 20518D-18-06 | M18x1.5 | 8 | 6 | 10 | 33 | 2.4 | 17 | 22 |
| 20518D-20-06 | M20x1.5 | 8 | 6 | 12 | 33.5 | 2.4 | 17 | 24 |
| 20518D-22-06 | M22x1.5 | 8 | 6 | 14 | 33 | 2.4 | 19 | 27 |
| 20518D-24-08 | M24x1.5 | 11 | 8 | 16 | 36.5 | 2.4 | 22 | 30 |
| 20518D-30-10 | M30x2 | 12.5 | 10 | 20 | 45 | 3.1 | 27 | 36 |
| 20518D-30-12 | M30x2 | 16 | 12 | 20 | 45.5 | 3.1 | 27 | 36 |
| 20518D-36-12 | M36x2 | 16 | 12 | 25 | 46.5 | 4.5 | 36 | 41 |
| 20518D-36-16 | M36x2 | 22 | 16 | 25 | 43 | 4.5 | 36 | 41 |
| 20518D-42-16 | M42x2 | 22 | 16 | 30 | 46 | 6 | 41 | 50 |
| 20518D-42-20 | M42x2 | 29 | 20 | 30 | 46 | 6 | 41 | 50 |
| 20518D-52-20 | M52x2 | 29 | 20 | 38 | 48 | 6.5 | 50 | 60 |
| 20518D-52-24 | M52x2 | 35 | 24 | 38 | 48 | 6.5 | 50 | 60 |

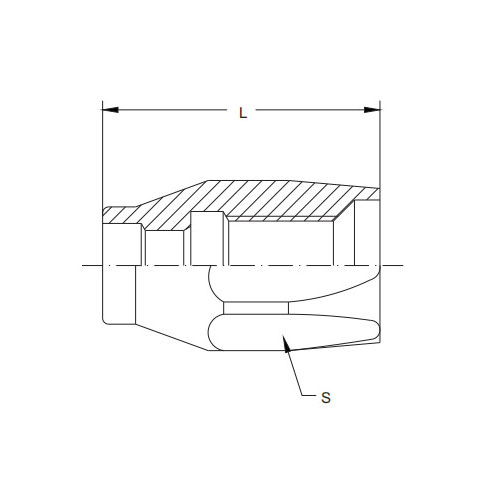

| PARTNO. | HOSEBORE | DIMENSIONS | ||
| DN | DASH | L | S | |
| 00518-04 | 5 | 4 | 28 | 17 |
| 00518-05 | 6.3 | 5 | 30.5 | 19 |
| 00518-06 | 8 | 6 | 33 | 22 |
| 00518-08 | 11 | 8 | 42 | 24 |
| 00518-10 | 12.5 | 10 | 45.5 | 30 |
| 00518-12 | 16 | 12 | 53.5 | 32 |
| 00518-16 | 22 | 16 | 42 | 36 |
| 00518-20 | 29 | 20 | 44.5 | 46 |
| 00518-24 | 35 | 24 | 47 | 50 |
| 00518-32 | 46 | 32 | 57 | 65 |
The 20518D-Metric Female 24° Cone O-Ring H.T. Detachable Hose Fitting is a highly specialized and reliable fitting designed for metric-sized hoses. Its unique features make it a standout choice for a wide range of industrial applications where secure and detachable hose connections are crucial.
The female port of this fitting features a 24° cone seat, which mates securely with a compatible male fitting, creating a leak-tight seal. The inclusion of an O-ring further enhances the sealing capabilities of this fitting, ensuring a robust and reliable connection even under high-pressure or extreme conditions.
The detachable design of the 20518D-Metric Female 24° Cone O-Ring H.T. Hose Fitting allows for easy and quick disconnection and reconnection of hoses. This feature is particularly useful in applications where hoses need to be frequently removed or replaced, such as in maintenance or repair operations.
Manufactured from high-quality materials, this fitting is corrosion-resistant and designed for durability and long-term performance. It can withstand harsh industrial environments and maintain its integrity and functionality over time.
The 20518D-Metric Female 24° Cone O-Ring H.T. Detachable Hose Fitting is an excellent choice for industrial fluid systems that require secure, detachable, and leak-free hose connections. Its versatility, sealing capabilities, and durability make it a trusted component for maintaining the integrity and performance of your fluid system. Whether you're working in the oil and gas industry, heavy machinery, or any other industrial sector, this fitting offers a reliable solution for your hose connection needs.
