Part No.: 26711
Description: 26711 JIC FEMALE 74°CONE SEAT
Convertible code:
Material: Carbon Steel 45#
Surface Treatment: Zinc, Cr3+ Plating, Clear White
Corrossion Resistent Hour: 120h or longer
Degree: Straight

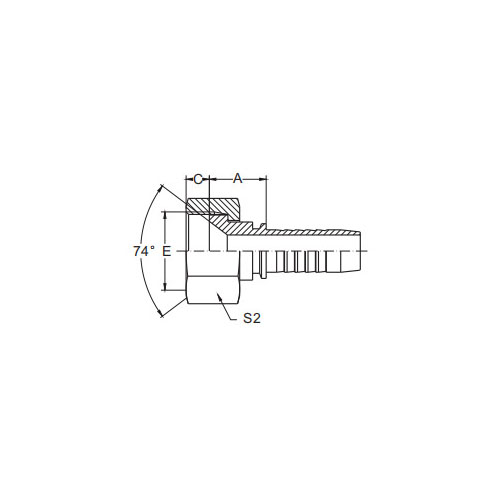

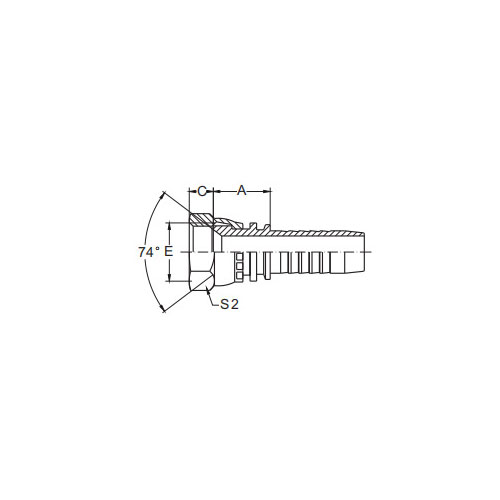

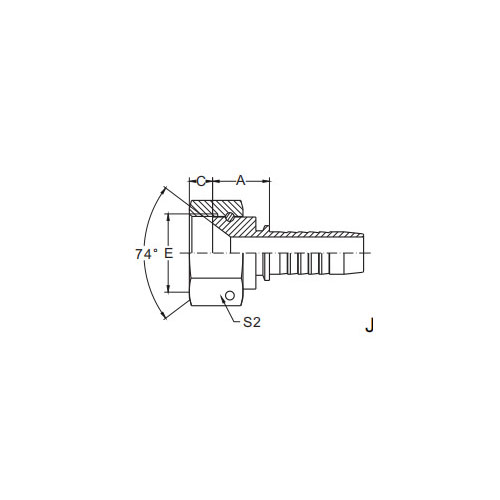

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S2 | ||
| 26711-04-03 | 7/ 16x20 | 5 | 3 | 14 | 8 .7 | 14 |
| 26711-04-04 | 7/ 16x20 | 6 | 4 | 15 | 8 .7 | 14 |
| 26711-05-04 | 1/2x20 | 6 | 4 | 16 | 9 .5 | 16 |
| 26711-05-05 | 1/2x20 | 8 | 5 | 16 | 9 .5 | 16 |
| 26711-05-06 | 1/2x20 | 10 | 6 | 16 | 9 .5 | 16 |
| 26711-06-04 | 9/ 16x18 | 6 | 4 | 17 | 9 .5 | 19 |
| 26711-06-05 | 9/ 16x18 | 8 | 5 | 17 | 9 .5 | 19 |
| 26711-06-06 | 9/ 16x18 | 10 | 6 | 17 | 9 .5 | 19 |
| 26711-06-08 | 9/ 16x18 | 12 | 8 | 17 .5 | 9 .5 | 19 |
| 26711-08-06 | 3/4x16 | 10 | 6 | 18 .5 | 10 .7 | 22 |
| 26711-08-08 | 3/4x16 | 12 | 8 | 19 | 10 .7 | 22 |
| 26711-08-10 | 3/4x16 | 16 | 10 | 19 .5 | 10 .7 | 22 |
| 26711-10-06T | 7/8x14 | 10 | 6 | 19 | 13 .6 | 27 |
| 26711-10-08 | 7/8x14 | 12 | 8 | 20 | 12 .7 | 27 |
| 26711-10-10 | 7/8x14 | 16 | 10 | 20 | 12 .7 | 27 |
| 26711-10-12 | 7/8x14 | 20 | 12 | 20 | 12 .7 | 27 |
| 26711-12-08T | 1- 1/ 16x12 | 12 | 8 | 20 | 14 .3 | 32 |
| 26711-12-10 | 1- 1/ 16x12 | 16 | 10 | 21 .5 | 14 .3 | 32 |
| 26711-12-12 | 1- 1/ 16x12 | 20 | 12 | 21 .5 | 14 .3 | 32 |
| 26711-12-16 | 1- 1/ 16x12 | 25 | 16 | 23 | 14 .3 | 32 |
| 26711-14-12 | 1-3/ 16x12 | 20 | 12 | 22 .2 | 14 .7 | 36 |
| 26711-16-12T | 1-5/ 16x12 | 20 | 12 | 20 | 15 . 1 | 41 |
| 26711-16-16 | 1-5/ 16x12 | 25 | 16 | 25 | 15 . 1 | 38 |
| 26711-16-20 | 1-5/ 16x12 | 32 | 20 | 25 | 15 . 1 | 38 |
| 26711-20-16T | 1-5/8x12 | 25 | 16 | 23 | 16 .5 | 50 |
| 26711-20-20W | 1-5/8x12 | 32 | 20 | 28 | 16 .5 | 50 |
| 26711-24-20W | 1-7/8x12 | 32 | 20 | 30 | 19 .5 | 55 |
| 26711-24-24W | 1-7/8x12 | 40 | 24 | 30 | 19 .5 | 55 |
| 26711-32-24T | 2- 1/2x12 | 40 | 24 | 27 | 23 .5 | 75 |
| 26711-32-32T | 2- 1/2x12 | 50 | 32 | 27 | 23 .5 | 75 |
26711 JIC Female 74° Cone Seat Introduction
The 26711 JIC Female 74° Cone Seat is a high-performance fluid fitting designed for use in a wide range of industrial applications. This precision-manufactured component offers a robust and leak-resistant connection, ensuring reliable fluid transfer under varying pressure and temperature conditions.
The JIC (Joint Industry Council) thread pattern of the 26711 fitting ensures compatibility with a broad array of standard components, facilitating seamless integration into existing fluid systems. The female thread design mates securely with male components, creating a strong and stable connection that can withstand the demands of industrial use.
The 74° cone seat is a critical element of the fitting, providing a tight and secure seal. This cone seat is designed to fit perfectly with the mating male cone, ensuring a leak-free connection that can handle high-pressure fluids effectively.
Manufactured from high-quality materials, the 26711 JIC Female 74° Cone Seat exhibits excellent durability and resistance to corrosion. This ensures reliable performance even in harsh industrial environments, making it a dependable choice for long-term use.
Whether you're working with hydraulics, pneumatics, or other types of fluid systems, the 26711 JIC Female 74° Cone Seat is an excellent choice for a robust and leak-resistant connection. Its precision engineering and high-quality materials make it a valuable addition to any industrial fluid system that requires a secure and reliable connection.
