Part No.: 26741
Description: 26741 45°JIC FEMALE 74°CONE SEAT
Convertible code:
Material: Carbon Steel 45#
Surface Treatment: Zinc, Cr3+ Plating, Clear White
Corrossion Resistent Hour: 120h or longer
Degree: 45°

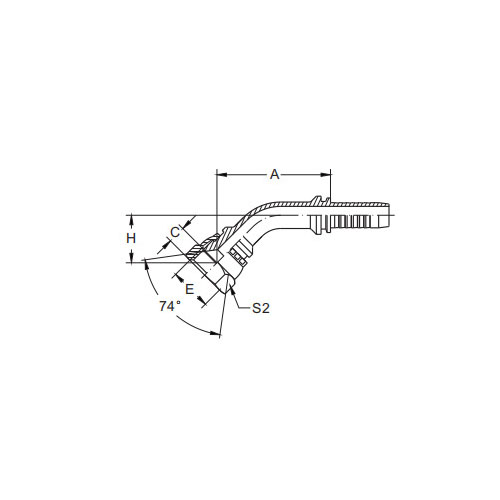

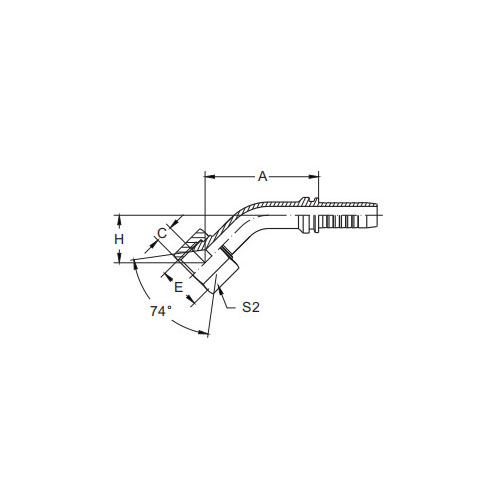

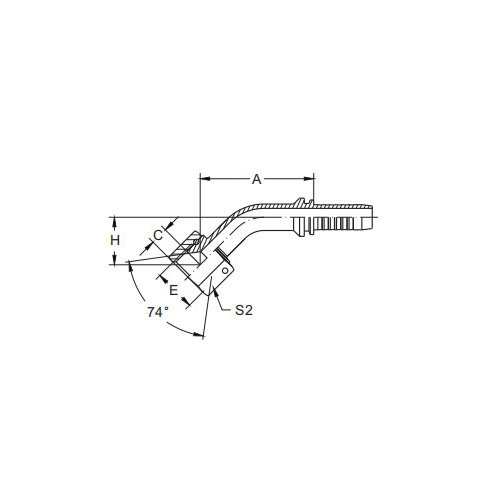

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||
| 26741-04-03 | 7/ 16x20 | 5 | 3 | 32 .7 | 8 .7 | 12 .2 | 14 |
| 26741-04-04 | 7/ 16x20 | 6 | 4 | 35 .2 | 8 .7 | 13 .2 | 14 |
| 26741-05-04 | 1/2x20 | 6 | 4 | 35 .6 | 9 .5 | 13 .5 | 16 |
| 26741-05-05 | 1/2x20 | 8 | 5 | 37 .7 | 9 .5 | 14 .4 | 16 |
| 26741-05-06 | 1/2x20 | 10 | 6 | 37 .7 | 9 .5 | 14 .4 | 16 |
| 26741-06-04 | 9/ 16x18 | 6 | 4 | 35 .6 | 9 .5 | 13 .5 | 19 |
| 26741-06-05 | 9/ 16x18 | 8 | 5 | 37 .7 | 9 .5 | 14 .4 | 19 |
| 26741-06-06 | 9/ 16x18 | 10 | 6 | 38 .8 | 9 .5 | 15 .5 | 19 |
| 26741-08-06 | 3/4x16 | 10 | 6 | 40 .2 | 10 .7 | 16 .2 | 22 |
| 26741-08-08 | 3/4x16 | 12 | 8 | 45 .3 | 10 .7 | 19 | 22 |
| 26741-10-08 | 7/8x14 | 12 | 8 | 46 .3 | 12 .7 | 20 | 27 |
| 26741-10-10 | 7/8x14 | 16 | 10 | 54 . 1 | 12 .7 | 21 .8 | 27 |
| 26741-10-12 | 7/8x14 | 20 | 12 | 58 .6 | 12 .7 | 21 .8 | 27 |
| 26741-12-08T | 1- 1/ 16x12 | 12 | 8 | 50 .4 | 14 .3 | 21 . 1 | 32 |
| 26741-12-10 | 1- 1/ 16x12 | 16 | 10 | 55 . 1 | 14 .3 | 22 .8 | 32 |
| 26741-12-12 | 1- 1/ 16x12 | 20 | 12 | 59 .3 | 14 .3 | 24 .2 | 32 |
| 26741-14-12 | 1-3/ 16x12 | 20 | 12 | 60 . 1 | 14 .7 | 24 .2 | 36 |
| 26741-16-12T | 1-5/ 16x12 | 20 | 12 | 60 . 1 | 15 . 1 | 24 .2 | 41 |
| 26741-16-16 | 1-5/ 16x12 | 25 | 16 | 73 .5 | 15 . 1 | 28 | 38 |
| 26741-20-20W | 1-5/8x12 | 32 | 20 | 85 .6 | 16 .5 | 34 .5 | 50 |
| 26741-24-20W | 1-7/8x12 | 32 | 20 | 86 .6 | 19 .5 | 35 .9 | 55 |
| 26741-24-24W | 1-7/8x12 | 40 | 24 | 114 .8 | 19 .5 | 44 . 1 | 55 |
26741 45° JIC Female 74° Cone Seat Introduction
The 26741 45° JIC Female 74° Cone Seat is a high-performance fluid fitting designed to meet the demands of a wide range of industrial applications. This precision-manufactured fitting features a unique 45° angle, providing a smooth and efficient transition for fluid flow while maintaining a secure and leak-resistant seal.
The JIC (Joint Industry Council) thread pattern ensures compatibility with a variety of standard components, making it easy to integrate into existing fluid systems. The female thread design allows for a secure connection with mating male components, creating a robust and reliable fluid connection.
The 74° cone seat is a critical element of the 26741 fitting, as it creates a secure seal with the mating male cone. This seal is designed to withstand high pressures and temperatures, ensuring a leak-free connection that can perform reliably in even the most demanding industrial environments.
Manufactured from high-quality materials, the 26741 45° JIC Female 74° Cone Seat is built to last. It exhibits excellent durability and resistance to corrosion, making it a reliable choice for long-term use in industrial fluid systems.
Whether you're working with hydraulics, pneumatics, or other types of fluid systems, the 26741 45° JIC Female 74° Cone Seat is an excellent choice for a secure and efficient connection. Its precision engineering, high-quality materials, and unique 45° design make it a valuable addition to any industrial fluid system that requires a robust and leak-resistant connection.
