Part No.: 2C9/2D9/-RN
Description: DIN 90°ELBOW REDUCER TUBE ADAPTOR WITH SWIVEL NUT
Convertible code:
Material: Carbon Steel 45#
Surface Treatment: Zinc, Cr3+ Plating, Clear White
Corrossion Resistent Hour: 120h or longer
Degree: 90° Elbow
| PART NO. | THREAD |
TUBE O.D |
DIMENSIONS | Mpa | |||||||

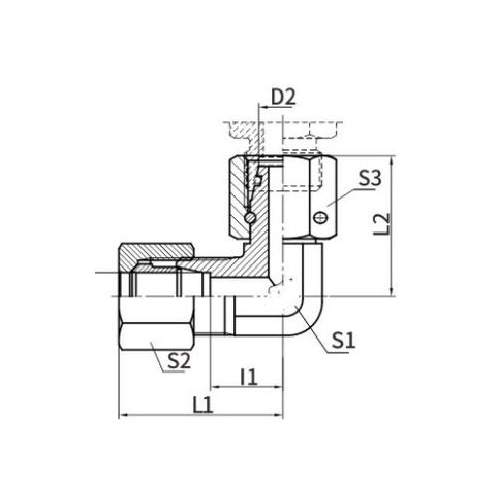

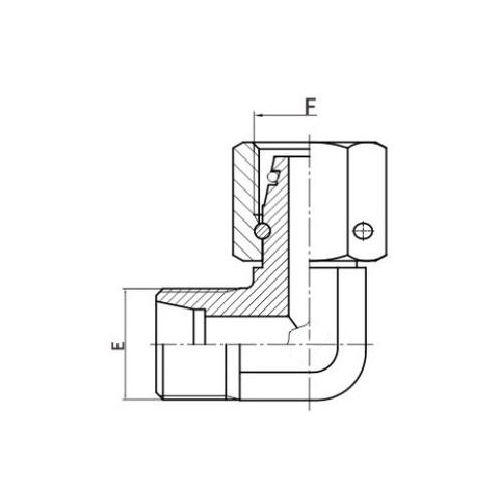

| E | F | D1 | D2 | I1 | L1 | L2 | S1 | S2 | S3 | ||
| 2C9-12 | M12X1.5 | M12X1.5 | 6 | 6 | 12 | 27 | 26 | 12 | 14 | 14 |
25 L |
| 2C9-14 | M14X1.5 | M14X1.5 | 8 | 8 | 14 | 29 | 27.5 | 12 | 17 | 17 | |
| 2C9-16 | M16X1.5 | M16X1.5 | 10 | 10 | 15 | 30 | 29 | 14 | 19 | 19 | |
| 2C9-18 | M18X1.5 | M18X1.5 | 12 | 12 | 17 | 32 | 29.5 | 17 | 22 | 22 | |
| 2C9-22 | M22X1.5 | M22X1.5 | 15 | 15 | 21 | 36 | 32.5 | 19 | 27 | 27 | |
| 2C9-26 | M26X1.5 | M26X1.5 | 18 | 18 | 23.5 | 40 | 35.5 | 24 | 32 | 32 | |
| 2C9-30 | M30X2 | M30X2 | 22 | 22 | 27.5 | 44 | 38.5 | 27 | 36 | 36 |
16 L |
| 2C9-36 | M36X2 | M36X2 | 28 | 28 | 30.5 | 47 | 41.5 | 36 | 41 | 41 | |
| 2C9-45 | MM45X2 | M45X2 | 35 | 35 | 34.5 | 56 | 51 | 41 | 50 | 50 | |
| 2C9-52 | M52X2 | M52X2 | 42 | 42 | 40 | 63 | 56 | 50 | 60 | 60 | |
| 2D9-14 | M14X1.5 | M14X1.5 | 6 | 6 | 16 | 31 | 27 | 12 | 17 | 17 |
63 S |
| 2D9-16 | M16X1.5 | M16X1.5 | 8 | 8 | 17 | 32 | 27.5 | 14 | 19 | 19 | |
| 2D9-18 | M18X1.5 | M18X1.5 | 10 | 10 | 17.5 | 34 | 30 | 17 | 22 | 22 | |
| 2D9-20 | M20X1.5 | M20X1.5 | 12 | 12 | 21.5 | 38 | 31 | 17 | 24 | 24 | |
| 2D9-22 | M22X1.5 | M22X1.5 | 14 | 14 | 22 | 40 | 35 | 19 | 27 | 27 | |
| 2D9-24 | M24X1.5 | M24X1.5 | 16 | 16 | 24.5 | 43 | 36.5 | 24 | 30 | 30 |
40 S |
| 2D9-30 | M30X2 | M30X2 | 20 | 20 | 26.5 | 48 | 44.5 | 27 | 36 | 36 | |
| 2D9-36 | M36X2 | M36X2 | 25 | 25 | 30 | 54 | 50 | 36 | 46 | 46 | |
| 2D9-42 | M42X2 | M42X2 | 30 | 30 | 35.5 | 62 | 55 | 41 | 50 | 50 | |
| 2D9-52 | M52X2 | M52X2 | 38 | 38 | 41 | 72 | 63 | 50 | 60 | 60 |
31.5 S |
DIN 90° Elbow Reducer Tube Adaptor With Swivel Nut Introduction
The DIN 90° Elbow Reducer Tube Adaptor With Swivel Nut is a specialized hydraulic fitting designed for making 90-degree turns in fluid power systems. This adaptor conforms to DIN (Deutsches Institut für Normung) standards, guaranteeing its compatibility and performance in a multitude of industrial settings.
Featuring a swivel nut, this adaptor offers exceptional ease of installation and adjustability, particularly in confined or hard-to-reach spaces. The swivel function of the nut facilitates smooth and precise alignment during the connection process.
Crafted from robust materials, the 90° elbow reducer tube adaptor exhibits superior durability and resistance to corrosion, making it suitable for use in high-pressure fluid systems. The adaptor maintains a secure, leak-proof connection, essential for the reliable operation of hydraulic systems.
This adaptor finds its applications in diverse hydraulic systems, spanning industries such as automotive, construction, and heavy machinery. Whether it’s for connecting complex industrial hydraulics or for simpler plumbing tasks, the DIN 90° Elbow Reducer Tube Adaptor With Swivel Nut provides an efficient and dependable solution for fluid power connections that require a 90-degree turn.
