Part No.: 4C/4D
Description: DIN METRIC MALE 24°L .T. PULG
Convertible code:
Material: Carbon Steel 45#
Surface Treatment: Zinc, Cr3+ Plating, Clear White
Corrossion Resistent Hour: 120h or longer
Degree: Straight

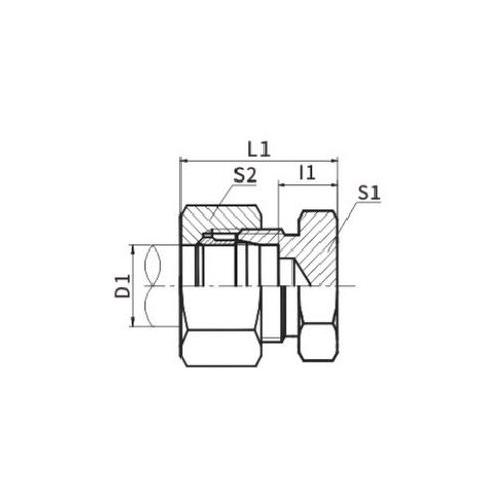

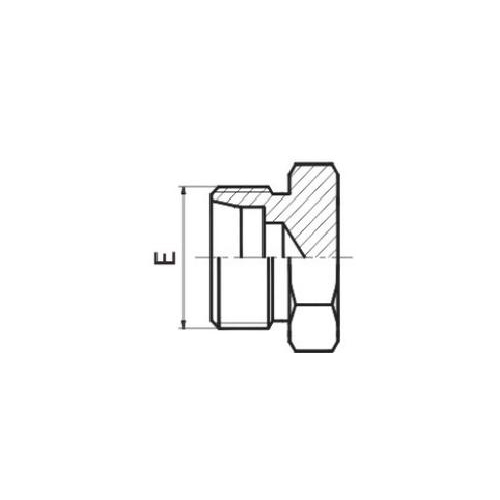

| PART NO. | THREAD | TUBE O.D. | DIMENSIONS | ||||
| E | D1 | 11 | L1 | S1 | S2 | ||
| 4C-12 | M12X1.5 | 6 | 7 | 22 | 12 | 14 | |
| 4C-14 | M14X1.5 | 8 | 8 | 23 | 14 | 17 | |
| 4C-16 | M16X1.5 | 10 | 9 | 24 | 17 | 19 | |
| 4C-18 | M18X1.5 | 12 | 10 | 25 | 19 | 22 | |
| 4C-22 | M22X1.5 | 15 | 11 | 26 | 24 | 27 | |
| 4C-26 | M26X1.5 | 18 | 11.5 | 28 | 27 | 32 | |
| 4C-30 | M30X2 | 22 | 13.5 | 30 | 32 | 36 | |
| 4C-36 | M36X2 | 28 | 14.5 | 31 | 41 | 41 | |
| 4C-45 | M45X2 | 35 | 14.5 | 36 | 46 | 50 | |
| 4C-52 | M52X2 | 42 | 16 | 39 | 55 | 60 | |
| 4D-14 | M14X1.5 | 6 | 11 | 26 | 14 | 17 | |
| 4D-16 | M16X1.5 | 8 | 13 | 28 | 17 | 19 | |
| 4D-18 | M18X1.5 | 10 | 12.5 | 29 | 19 | 22 | |
| 4D-20 | M20X1.5 | 12 | 14.5 | 31 | 22 | 24 | |
| 4D-22 | M22X1.5 | 14 | 16 | 34 | 24 | 27 | |
| 4D-24 | M24X1.5 | 16 | 15.5 | 34 | 27 | 30 | |
| 4D-30 | M30X2 | 20 | 17.5 | 39 | 32 | 36 | |
| 4D-36 | M36X2 | 25 | 20 | 44 | 38 | 46 | |
| 4D-42 | M42X2 | 30 | 20.5 | 47 | 46 | 50 | |
| 4D-52 | M52X2 | 38 | 23 | 54 | 55 | 60 | |
DIN Metric Male 24° Light Series (L.T.) Plug Introduction
The DIN Metric Male 24° Light Series (L.T.) Plug is a hydraulic fitting designed for use in low-pressure fluid power applications. It features a male thread connection with a 24-degree cone seat, conforming to DIN (Deutsches Institut für Normung) standards. The light series designation indicates that this fitting is suitable for use in systems with lower pressure requirements.
The plug's design allows for easy and secure connection to a corresponding female socket, ensuring a leak-free seal. The metric male threading ensures compatibility with a wide range of hydraulic equipment and hoses that adhere to DIN specifications.
Constructed from durable materials, such as steel or brass, the DIN Metric Male 24° L.T. Plug offers excellent corrosion resistance and longevity, making it suitable for use in various industrial and commercial applications.
Whether you're working with hydraulic systems in the automotive, construction, or any other industry, the DIN Metric Male 24° L.T. Plug provides a reliable and standardized solution for connecting and disconnecting hydraulic lines. Its ease of use and dependability make it a popular choice among professionals.
