Part No.: 2C/-RN
Description: DIN REDUCER TUBE ADAPTOR WITH SWIVEL NUT
Convertible code:
Material: Carbon Steel 45#
Surface Treatment: Zinc, Cr3+ Plating, Clear White
Corrossion Resistent Hour: 120h or longer
Degree: Straight
| PART NO | THREAD |
TUBE O.D. |
DIMENSIONS |
MPA |
||||||

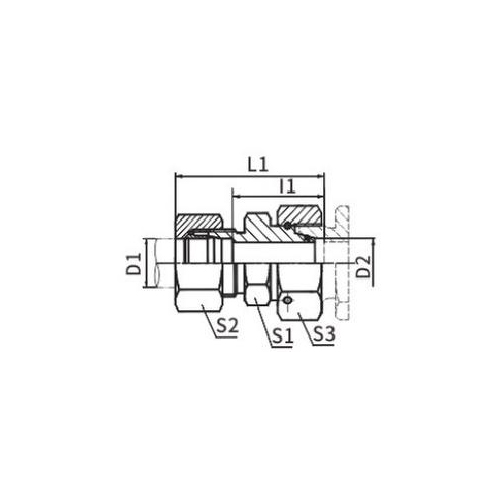

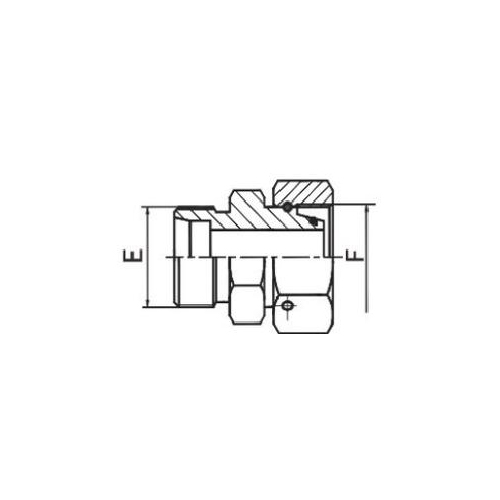

| E | F | D1 | D2 | l1 | L1 | S1 | S2 | S3 |
31.5 L |
|
| 2C-12-14 | M12X1.5 | M14X1.5 | 6 | 8 | 23.5 | 38 | 12 | 14 | 17 | |
| 2C-12-16 | M12X1.5 | M16X1.5 | 6 | 10 | 25 | 40 | 14 | 14 | 19 | |
| 2C-14-16 | M14X1.5 | M16X1.5 | 8 | 10 | 25 | 40 | 14 | 17 | 19 | |
| 2C-16-18 | M16X1.5 | M18X1.5 | 10 | 12 | 26 | 41 | 17 | 19 | 22 | |
| 2C-14-22 | M14X1.5 | M22X1.5 | 8 | 15 | 28.5 | 43 | 19 | 17 | 27 | |
| 2C-16-22 | M16X1.5 | M22X1.5 | 10 | 15 | 29.5 | 44 | 19 | 19 | 27 | |
| 2C-18-22 | M18X1.5 | M22X1.5 | 12 | 15 | 29.5 | 44 | 19 | 22 | 27 | |
| 2C-16-26 | M16X1.5 | M26X1.5 | 10 | 18 | 29 | 44 | 24 | 19 | 32 | |
| 2C-18-26 | M18X1.5 | M26X1.5 | 12 | 18 | 29 | 44 | 24 | 22 | 32 | |
| 2C-22-26 | M22X1.5 | M26X1.5 | 15 | 18 | 30 | 45 | 24 | 27 | 32 | |
| 2C-18-30 | M18X1.5 | M30X2 | 12 | 22 | 33 | 48 | 27 | 22 | 36 |
16 L |
| 2C-22-30 | M22X1.5 | M30X2 | 15 | 22 | 34 | 49 | 27 | 27 | 36 | |
| 2C-26-30 | M26X1.5 | M30X2 | 18 | 22 | 33.5 | 50 | 27 | 32 | 36 | |
| 2C-22-36 | M22X1.5 | M36X2 | 15 | 28 | 36 | 51 | 36 | 27 | 41 | |
| 2C-26-36 | M26X1.5 | M36X2 | 18 | 28 | 35.5 | 52 | 36 | 32 | 41 | |
| 2C-30-36 | M30X2 | M36X2 | 22 | 28 | 37.5 | 54 | 36 | 36 | 41 | |
| 2C-26-45 | M26X1.5 | M45X2 | 18 | 35 | 38.5 | 55 | 41 | 32 | 50 | |
| 2C-30-45 | M30X2 | M45X2 | 22 | 35 | 40.5 | 57 | 41 | 36 | 50 | |
| 2C-36-45 | M36X2 | M45X2 | 28 | 35 | 40.5 | 57 | 41 | 41 | 50 | |
| 2C-26-52 | M26X1.5 | M52X2 | 18 | 42 | 42 | 58 | 50 | 32 | 60 | |
| 2C-30-52 | M30X2 | M52X2 | 22 | 42 | 44 | 60 | 50 | 36 | 60 | |
| 2C-36-52 | M36X2 | M52X2 | 28 | 42 | 44 | 61 | 50 | 41 | 60 | |
| 2C-45-52 | M45X2 | M52X2 | 35 | 42 | 43 | 65 | 50 | 50 | 60 | |
DIN Reducer Tube Adaptor With Swivel Nut Introduction
The DIN Reducer Tube Adaptor With Swivel Nut is a hydraulic fitting specifically designed for connecting tubes of different diameters in fluid power systems. This adaptor follows the DIN (Deutsches Institut für Normung) standards, ensuring its compatibility and performance across various industrial applications.
One of the key features of this adaptor is the swivel nut, which greatly simplifies installation and adjustment. The swivel nut allows for flexible alignment during the connection process, making it easier to work in confined spaces or awkward angles.
Made from high-quality materials, the DIN Reducer Tube Adaptor With Swivel Nut offers exceptional durability and corrosion resistance, ensuring a long service life even in demanding industrial environments. It is designed to maintain a secure, leak-free connection under high pressure, vital for the safe and efficient operation of fluid power systems.
This adaptor finds widespread use in hydraulic systems across multiple industries, including automotive, construction, and manufacturing. Whether you're working on a complex industrial hydraulic setup or a more straightforward plumbing project, the DIN Reducer Tube Adaptor With Swivel Nut provides a robust, versatile, and easy-to-use solution for connecting tubes of different sizes.
