Part No.: 20441
Description: 20441-45° METRIC FEMALE 24° CONE L.T.
Convertible code:
Material: Carbon Steel 45#
Surface Treatment: Zinc, Cr3+Plating, Clear White
Corrossion Resistent Hour: 120h or longer
Degree:45°

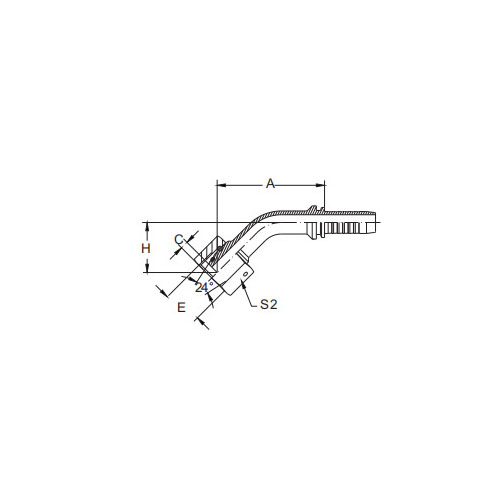

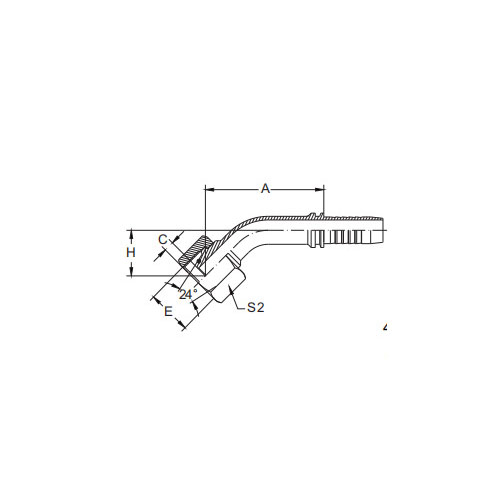

| PARTNO. | THREADE | HOSEBORE | TUBEO.D. | ORING | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||||
| 20441-12-04 | M12x1.5 | 6 | 4 | 6 | O04.5x1.5 | 36 | 1.1 | 15.1 | 14 |
| 20441-14-04T | M14x1.5 | 6 | 4 | 8 | O06.5x1.5 | 38.1 | 1.1 | 16 | 17 |
| 20441-16-04T | M16x1.5 | 6 | 4 | 10 | O08.0x1.5 | 38.1 | 2 | 16 | 19 |
| 20441-16-05T | M16x1.5 | 8 | 5 | 10 | O08.0x1.5 | 40.3 | 2 | 17 | 19 |
| 20441-16-06 | M16x1.5 | 10 | 6 | 10 | O08.0x1.5 | 40.3 | 1.3 | 17 | 19 |
| 20441-18-05T | M18x1.5 | 8 | 5 | 12 | O10.0x1.5 | 40.3 | 2 | 17 | 22 |
| 20441-18-06T | M18x1.5 | 10 | 6 | 12 | O10.0x1.5 | 45 | 2 | 18.5 | 22 |
| 20441-22-05T | M22x1.5 | 8 | 5 | 15 | O12.0x2.0 | 40.9 | 2.5 | 18 | 27 |
| 20441-22-06T | M22x1.5 | 10 | 6 | 15 | O12.0x2.0 | 42 | 2.5 | 18 | 27 |
| 20441-22-08T | M22x1.5 | 12 | 8 | 15 | O12.0x2.0 | 48.8 | 2.5 | 20 | 27 |
| 20441-26-08T | M26x1.5 | 12 | 8 | 18 | O15.0x2.0 | 47.3 | 2 | 21 | 32 |
| 20441-26-10T | M26x1.5 | 16 | 10 | 18 | O15.0x2.0 | 58 | 2 | 23.5 | 32 |
| 20441-26-12 | M26x1.5 | 20 | 12 | 18 | O15.0x2.0 | 61.4 | 2.5 | 24.6 | 32 |
| 20441-27-10T | M27x1.5 | 16 | 10 | 18 | O15.0x2.0 | 55.1 | 2.5 | 23.5 | 32 |
| 20441-30-10T | M30x2 | 16 | 10 | 22 | O20.0x2.0 | 56.4 | 3 | 24.1 | 36 |
| 20441-30-12T | M30x2 | 20 | 12 | 22 | O20.0x2.0 | 63.2 | 3 | 25.6 | 36 |
| 20441-36-12T | M36x2 | 20 | 12 | 28 | O26.0x2.0 | 61.5 | 3.7 | 25.6 | 41 |
| 20441-36-14T | M36x2 | 22 | 14 | 28 | O26.0x2.0 | 67.9 | 3.7 | 31.6 | 41 |
| 20441-36-16T | M36x2 | 25 | 16 | 28 | O26.0x2.0 | 77.6 | 3.7 | 32 | 41 |
| 20441-45-20T | M45x2 | 32 | 20 | 35 | O32.0x2.5 | 88.7 | 3.5 | 38 | 50 |
| 20441-52-20T | M52x2 | 32 | 20 | 42 | O38.0x2.5 | 90.3 | 4.5 | 38 | 60 |
| 20441-52-24T | M52x2 | 40 | 24 | 42 | O38.0x2.5 | 114.5 | 4.5 | 43.7 | 60 |
20441-45°Metric Female 24°Cone L.T.Introduction
The 20441-45° Metric Female 24° Cone L.T. fitting is a precision-engineered component designed to meet the demands of metric fluid systems, particularly those operating under low-temperature conditions. This unique fitting incorporates a 24° cone seat and is optimized for low-temperature (L.T.) applications, ensuring reliable performance even in freezing environments.
The 24° cone seat of the 20441-45° fitting provides a secure and leak-free seal with its corresponding male component. This design ensures a robust connection that can withstand both the rigors of low-temperature operation and the demands of high-pressure fluid systems.
Manufactured from high-quality materials, the 20441-45° Metric Female 24° Cone L.T. fitting exhibits excellent durability and resistance to cold-related degradation. This makes it an ideal choice for applications in cold storage facilities, outdoor environments, or any other scenario where low temperatures are a concern.
In addition to its robust sealing capabilities, the 20441-45° fitting is also designed for ease of installation and disassembly. This simplifies the process of connecting and disconnecting fluid lines, reducing downtime and enhancing operational efficiency.
Overall, the 20441-45° Metric Female 24° Cone L.T. fitting offers a reliable and efficient solution for metric fluid systems operating under low-temperature conditions. Its precision engineering, high-quality materials, and optimized design for cold environments make it a valuable addition to any industrial fluid system that requires secure and leak-free connections in challenging climatic conditions.
