Part No.: 20511
Description: 20511-METRIC FEMALE 24° CONE O-RING H.T.
Convertible code:
Material: Carbon Steel 45#
Surface Treatment: Zinc, Cr3+Plating, Clear White
Corrossion Resistent Hour: 120h or longer
Degree: Straight

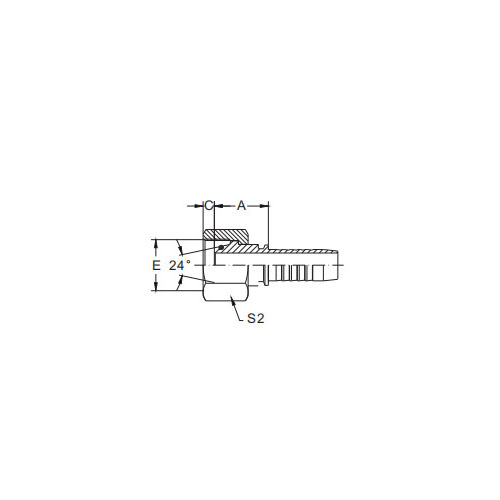

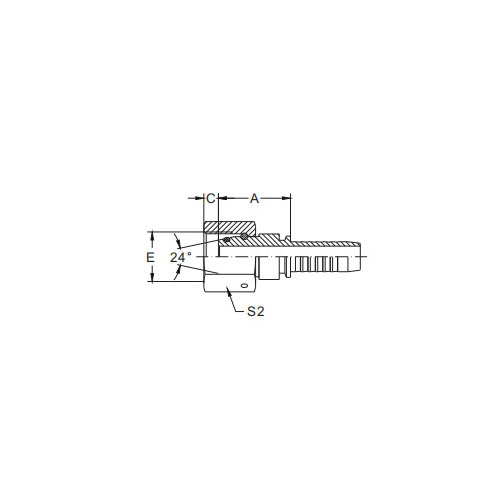

| PART NO. | THREAD E | HOSE BORE | TUBE O.D. | O RING | DIMENSIONS | |||
| DN | DASH | A | C | S2 | ||||
| 20511-14-04T | M16x1.5 | 6 | 4 | 6 | O04.5x1.5 | 23 | 2.5 | 17 |
| 20511-16-04T | M16x1.5 | 6 | 4 | 8 | O06.5x1.5 | 21 | 2.6 | 19 |
| 20511-16-05T | M16x1.5 | 8 | 5 | 8 | O06.5x1.5 | 23 | 2.6 | 19 |
| 20511-18-04T | M18x1.5 | 6 | 4 | 10 | O08.0x1.5 | 25.5 | 2.5 | 22 |
| 20511-18-06T | M18x1.5 | 10 | 6 | 10 | O08.0x1.5 | 26 | 2.5 | 22 |
| 20511-20-06T | M20x1.5 | 10 | 6 | 12 | O10.0x1.5 | 26 | 2.5 | 24 |
| 20511-20-08 | M20x1.5 | 12 | 8 | 12 | O10.0x1.5 | 26 | 2.4 | 24 |
| 20511-22-06T | M22x1.5 | 10 | 6 | 14 | O11.0x2.0 | 26.5 | 2.5 | 27 |
| 20511-22-08T | M22x1.5 | 12 | 8 | 14 | O11.0x2.0 | 28 | 2.5 | 27 |
| 20511-24-06T | M24x1.5 | 10 | 6 | 16 | O13.0x2.0 | 27 | 4 | 30 |
| 20511-24-08T | M24x1.5 | 12 | 8 | 16 | O13.0x2.0 | 27 | 4 | 30 |
| 20511-30-10T | M30x2 | 16 | 10 | 20 | O16.3x2.4 | 33 | 3.5 | 36 |
| 20511-30-12T | M30x2 | 20 | 12 | 20 | O16.3x2.4 | 35 | 3.5 | 36 |
| 20511-36-12T | M36x2 | 20 | 12 | 25 | O20.3x2.4 | 31.5 | 4.5 | 46 |
| 20511-36-14T | M36x2 | 22 | 14 | 25 | O20.3x2.4 | 34 | 4.5 | 46 |
| 20511-36-16T | M36x2 | 25 | 16 | 25 | O20.3x2.4 | 34 | 4.5 | 46 |
| 20511-42-12T | M42x2 | 20 | 12 | 30 | O25.3x2.4 | 37.5 | 6 | 50 |
| 20511-42-16T | M42x2 | 25 | 16 | 30 | O25.3x2.4 | 38.5 | 6 | 50 |
| 20511-52-20T | M52x2 | 32 | 20 | 38 | O33.3x2.4 | 41.5 | 6.5 | 60 |
| 20511-52-24T | M52x2 | 40 | 24 | 38 | O33.3x2.4 | 41.5 | 6.5 | 60 |
20511-Metric Female 24° Cone O-Ring H.T. Introduction
The 20511-Metric Female 24° Cone O-Ring H.T. fitting is a precision-engineered component designed to meet the rigorous demands of metric fluid systems. This female fitting incorporates a 24° cone seat and an O-ring for a secure and leak-free connection.
The 24° cone seat is carefully crafted to ensure a tight and reliable seal with its corresponding male component. This design feature is essential for maintaining fluid integrity in high-pressure applications.
The integration of an O-ring into the fitting's design further enhances its sealing capabilities. The O-ring creates a robust barrier against leaks, ensuring that fluids flow smoothly and efficiently through the system.
The "H.T." in the product name stands for "High-Temperature," indicating that this fitting is suitable for use in environments where extreme temperatures are encountered. The high-temperature rating ensures that the fitting maintains its sealing performance even under the most challenging conditions.
Manufactured from high-quality materials, the 20511-Metric Female 24° Cone O-Ring H.T. fitting exhibits excellent corrosion resistance and durability. It is designed to withstand the demands of industrial environments and maintain its sealing performance over time.
In addition to its robust sealing capabilities, the 20511-Metric Female 24° Cone O-Ring H.T. fitting is also easy to install and disassemble. This feature simplifies the process of connecting and disconnecting fluid lines, reducing downtime and enhancing operational efficiency.
Overall, the 20511-Metric Female 24° Cone O-Ring H.T. fitting offers a reliable and efficient solution for metric fluid systems that require a secure and leak-free connection in high-pressure, high-temperature environments. Its precision engineering, high-quality materials, and sealing capabilities make it a valuable addition to any industrial fluid system.
