Part No.:20591
Description:20591-90° METRIC FEMALE 24°CONE O-RING H.T.
Convertible code:
Material:Carbon Steel 45#
SurfaceTreatment: Zinc, Cr3+Plating, Clear White
Corrossion Resistent Hour: 120h or longer
Degree:90°

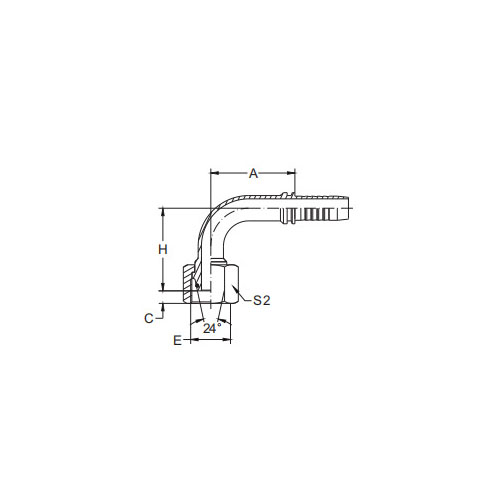

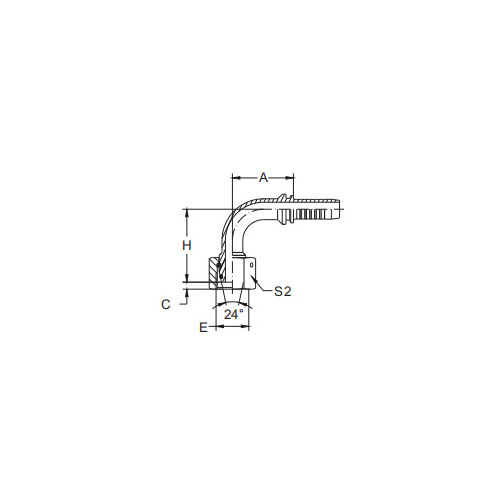

| PART NO. | THREAD E | HOSE BORE | TUBE O.D. | O RING | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||||
| 20591-14-04T | M16x1.5 | 6 | 4 | 6 | O04.5x1.5 | 30 | 2.5 | 32 | 17 |
| 20591-16-04T | M16x1.5 | 6 | 4 | 8 | O06.5x1.5 | 30 | 2.5 | 32 | 19 |
| 20591-16-05T | M16x1.5 | 8 | 5 | 8 | O06.5x1.5 | 30 | 2.5 | 32.5 | 19 |
| 20591-18-05T | M18x1.5 | 8 | 5 | 10 | O08.0x1.5 | 33 | 2.5 | 33.5 | 22 |
| 20591-18-06T | M18x1.5 | 10 | 6 | 10 | O08.0x1.5 | 37 | 2.5 | 35 | 22 |
| 20591-20-06T | M20x1.5 | 10 | 6 | 12 | O10.0x1.5 | 34.5 | 2.5 | 37 | 24 |
| 20591-20-08 | M20x1.5 | 12 | 8 | 12 | O10.0x1.5 | 41 | 2.5 | 42.5 | 24 |
| 20591-22-06T | M22x1.5 | 10 | 6 | 14 | O11.0x2.0 | 36.5 | 2.5 | 37 | 27 |
| 20591-22-08T | M22x1.5 | 12 | 8 | 14 | O11.0x2.0 | 42 | 2.5 | 42.5 | 27 |
| 20591-24-08T | M24x1.5 | 12 | 8 | 16 | O13.0x2.0 | 41 | 4 | 45.5 | 30 |
| 20591-24-10 | M24x1.5 | 16 | 10 | 16 | O13.0x2.0 | 45 | 2.5 | 45.5 | 30 |
| 20591-30-10T | M30x2 | 16 | 10 | 20 | O16.3x2.4 | 49 | 3.5 | 49.5 | 36 |
| 20591-30-12T | M30x2 | 20 | 12 | 20 | O16.3x2.4 | 55.8 | 3.5 | 54.5 | 36 |
| 20591-36-12T | M36x2 | 20 | 12 | 25 | O20.3x2.4 | 56 | 4.5 | 59 | 46 |
| 20591-36-14T | M36x2 | 22 | 14 | 25 | O20.3x2.4 | 58 | 4.5 | 59 | 46 |
| 20591-36-16T | M36x2 | 25 | 16 | 25 | O20.3x2.4 | 71 | 4.5 | 68.5 | 46 |
| 20591-42-16T | M42x2 | 25 | 16 | 30 | O25.3x2.4 | 71 | 6 | 70 | 50 |
| 20591-52-20T | M52x2 | 32 | 20 | 38 | O33.3x2.4 | 83 | 6.5 | 87 | 60 |
| 20591-52-24T | M52x2 | 40 | 24 | 38 | O33.3x2.4 | 109.4 | 6.5 | 100 | 60 |
20591-90°Metric Female 24°Cone O-Ring H.T.Introduction
The 20591-90° Metric Female 24° Cone O-Ring H.T. fitting represents a cutting-edge advancement in metric fluid connection technology. This female fitting is designed with a unique 90° angle and a precision-crafted 24° cone seat, which together ensure a secure and leak-free connection.
The 24° cone seat is specifically tailored for a snug fit with its male counterpart, providing a robust seal capable of withstanding high pressures and temperatures. This feature is essential in industrial applications where fluid integrity is crucial.
Furthermore, the integration of an O-ring into the design adds an extra layer of security. The O-ring creates a sealing barrier between the cone seat and the mating surface, effectively preventing leaks and ensuring smooth fluid transfer.
The "H.T." in the product name stands for "High-Temperature," indicating that this fitting is suitable for use in environments where extreme temperatures are a factor. The materials used in its construction are chosen for their excellent thermal stability, ensuring reliable performance even under demanding conditions.
The 20591-90° Metric Female 24° Cone O-Ring H.T. fitting is also notable for its ease of installation and disassembly. Its design allows for quick and efficient connections, minimizing downtime and enhancing operational efficiency.
In summary, the 20591-90° Metric Female 24° Cone O-Ring H.T. fitting offers a robust and reliable solution for metric fluid connections in high-pressure, high-temperature environments. Its precision engineering, thermal stability, and sealing capabilities make it a standout choice for industrial applications where safety and performance are paramount.
