Part No.:20691
Description:20691-90°METRIC FEMALE 60°CONE
Convertible code:
Material:Carbon Steel 45#
SurfaceTreatment: Zinc, Cr3+Plating, Clear White
Corrossion Resistent Hour: 120h or longer
Degree:90°

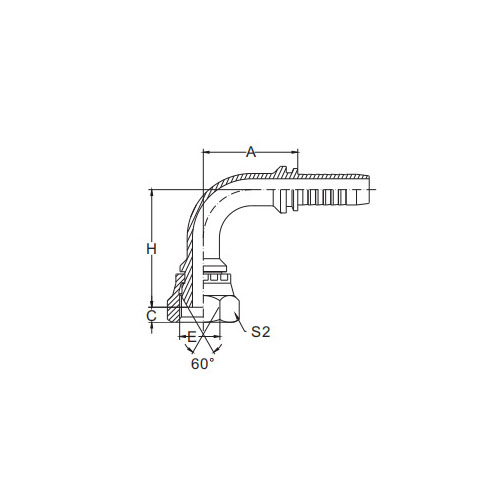

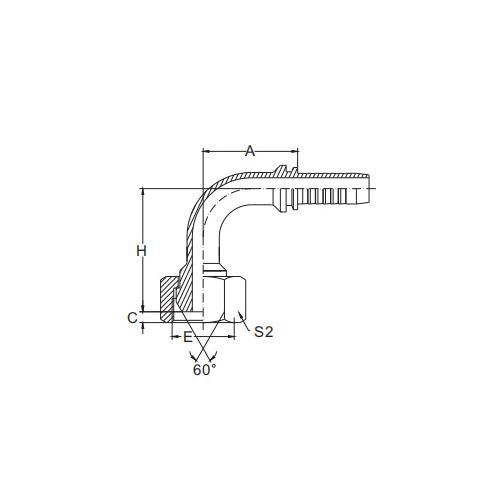

| PARTNO. | THREAD E | HOSEBORE | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||
| 20691-14-04 | M14x1.5 | 6 | 4 | 30 | 5.5 | 37 | 19 |
| 20691-16-05 | M16x1.5 | 8 | 5 | 33 | 5.5 | 40.5 | 22 |
| 20691-18-06 | M18x1.5 | 10 | 6 | 35.3 | 5.5 | 43.8 | 24 |
| 20691-22-08 | M22x1.5 | 12 | 8 | 41 | 6 | 52 | 27 |
| 20691-27-10DT | M27x1.5 | 16 | 10 | 56 | 6 | 55 | 32 |
| 20691-30-12D | M30x1.5 | 20 | 12 | 66.2 | 6 | 68.5 | 36 |
| 20691-36-16 | M36*2 | 25 | 16 | 78 | 6.5 | 76.5 | 41 |
| 20691-36-14T | M36*2 | 22 | 14 | 71.2 | 6.5 | 67.5 | 41 |
| 20691-39-16T | M39*2 | 25 | 16 | 76.7 | 6.5 | 74 | 46 |
| 20691-45-20T | M45*2 | 32 | 20 | 91.5 | 8.5 | 85 | 55 |
| 20691-52-24T | M52*2 | 40 | 24 | 109.4 | 10 | 99 | 60 |
20691-90° Metric Female 60° Cone Introduction
The 20691-90° Metric Female 60° Cone is a specialized fitting designed for use in metric piping systems where a secure and leak-proof connection is essential. This female fitting features a unique 60° cone angle that mates perfectly with compatible male cone-threaded components, creating a robust and reliable seal.
The 60° cone angle of the 20691-90° Metric Female 60° Cone is optimized for maximum sealing performance. When combined with the corresponding male cone, it forms a secure and leak-resistant joint that can withstand high pressures and various operating conditions.
Manufactured from high-grade materials, this fitting is designed to withstand the demands of harsh industrial environments. It exhibits excellent corrosion resistance and durability, ensuring long-lasting performance even under challenging conditions.
The precision threading and cone shape of the 20691-90° Metric Female 60° Cone contribute to its exceptional sealing capabilities. The threads are meticulously machined to ensure a smooth and secure mating process with the male component.
Whether used in high-pressure fluid systems, chemical processing plants, or any other metric piping application that requires a secure and leak-proof connection, the 20691-90° Metric Female 60° Cone is an ideal choice. Its superior sealing performance, durable construction, and precision engineering make it a reliable and robust solution for your metric piping needs.
