Part No.: 26718
Description: 26718 JIC FEMALE 74°CONE SEAL DETACHABLE HOSE FITTING
Convertible code:
Material: Carbon Steel 45#
Surface Treatment: Zinc, Cr3+ Plating, Clear White
Corrossion Resistent Hour: 120h or longer
Degree: Straight

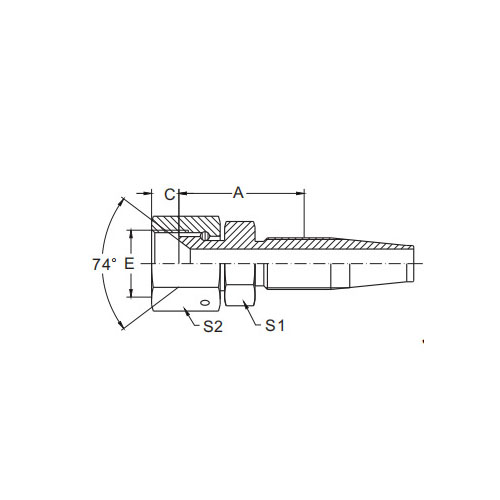

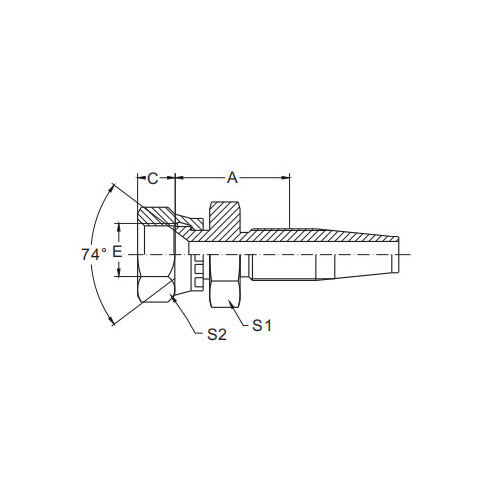

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | S1 | S2 | ||
| 26718D-04-04 | 7/ 16x20 | 5 | 4 | 22 | 8 .7 | 14 | 14 |
| 26718D-05-05 | 1/2x20 | 6 .3 | 5 | 25 .4 | 9 .5 | 14 | 16 |
| 26718D-06-06 | 9/ 16x18 | 8 | 6 | 24 .5 | 9 .5 | 17 | 19 |
| 26718D-08-08 | 3/4x16 | 11 | 8 | 31 .5 | 10 .7 | 22 | 22 |
| 26718D- 10- 10 | 7/8x14 | 12 .5 | 10 | 35 | 12 .7 | 27 | 27 |
| 26718D- 12- 12 | 1- 1/ 16x12 | 26 | 12 | 37 | 14 .3 | 32 | 32 |
| 26718D- 16- 16 | 1-5/ 16x12 | 22 | 16 | 35 .5 | 15 . 1 | 38 | 41 |
| 26718D-20-20W | 1-5/8x12 | 29 | 20 | 41 .5 | 16 .5 | 41 | 50 |
| 26718D-24-24W | 1-7/8x12 | 35 | 24 | 43 | 19 .5 | 46 | 55 |
| 26718D-32-32W | 2- 1/2x12 | 46 | 32 | 45 .5 | 23 .5 | 65 | 75 |
26718 JIC Female 74°Cone Seal Detachable Hose Fitting Introduction
The 26718 JIC Female 74°Cone Seal Detachable Hose Fitting is a versatile and reliable component designed for use in a wide range of industrial fluid systems. This fitting features a JIC (Joint Industry Council) female thread pattern with a 74° cone seal, providing a strong and leak-resistant connection that meets the industry standards for performance and safety.
The 74° cone seal design ensures a tight and secure connection between the fitting and the mating male component. This seal is particularly effective in high-pressure and high-temperature environments, where leaks and pressure losses can have serious consequences. The detachable nature of the fitting allows for easy installation and removal, enhancing the overall efficiency of the fluid system.
Manufactured from high-quality materials, the 26718 JIC Female 74°Cone Seal Detachable Hose Fitting is built to withstand the demands of heavy-duty industrial use. It exhibits excellent durability and resistance to corrosion, ensuring a long service life even in challenging conditions.
The hose fitting is also designed to be compatible with a range of hose types and sizes, providing flexibility and convenience in fluid system design. Whether you're working with rubber, PVC, or other types of hose, the 26718 fitting can be a reliable choice for your application.
In summary, the 26718 JIC Female 74°Cone Seal Detachable Hose Fitting is a robust and reliable component that offers superior sealing performance and ease of installation. Its industry-standard design and high-quality materials make it a valuable addition to any industrial fluid system that requires secure and leak-free connections.
